Manual Vial And Bottle Inspection Conveyor

AvailabilityPre Order
CategoryInspection Conveyor
Payment MethodsCash, DirectDebit, CheckInAdvance, ByInvoice, ByBankTransferInAdvance
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%

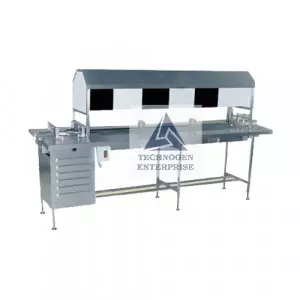

Manual Vial And Bottle Inspection Conveyor Details

Technogen Enterprise based in Ahmedabad, Gujarat, India is manufacturer, supplier & Exporter of wide varieties of Manual Vial / Bottle Visual Inspection Conveyor Machine which are used to execute visual inspection through Human intervention in Pharmaceutical, injectable company.  Machine has been facilitated with black & white board with suitable illumination arrangement in order to check the impurities in filled vial/ bottles. Machine is meticulously fabricated in such a way that machine conveyor is made of three partitions where Main middle portion of conveyor receive vials / bottle from upstream machine for inspection & two side conveyors taking out checked vials & transport them for auxiliary processing to downstream machine.

Salient Features:

  • CGMP Model & Modular Construction
  • white & back board for inspecting wide varieties of impurities
  • Machine Construction is using Stainless Steel
  • No format Parts required for changeover of each vial / bottle size.
  • trouble-free to operate.
  • Nearly Maintenance free machine.
  • According to seating arrangement various model available.

Technical Specification:



Model

TGVIC-60

TGVIC-100

TGVIC-150

TGVIC-200

TGVIC-250

Seating Arrangement for operator

2

4

6

8

10

Power Consumption

0.5 HP

0.5 HP

0.75 HP

0.75 HP

1 HP

Dimension
(L X W X H) mm

1300 x 765 x 1530

1900 x 765 x 1530

2550 x 765 x 1530

3100 x 765 x 1530

3700 x 765 x 1530

Direction

Left to Right

Electrical connection

415 Volts, 3 Phase (4wire   system)50 Hz.
